TỦ LẠNH Y SINH ÂM SÂU MDF-U5412-PB 482L -40℃ PCB CORPORATION/PHCBI - NHẬT BẢN
Cost-saving and environmentally friendly fresh frozen plasma storage
This MDF-U5412 Biomedical Plasma Freezer provides an ideal freezing environment for the preservation of vaccines, blood plasma, test samples and specimens. The MDF-U5412 Biomedical Plasma Freezer has a storage environment with excellent safety features, easy operability, and a lot of other features. The MDF-U5412 Biomedical Plasma Freezer offers unsurpassed reliability and functionality for short or intermediate term storage at temperatures as low as -40°C.
Stable & uniform temperature design
- Double outer doors.
- Full-height storage containers on each shelf.
- Cooling tubes under every shelf.
- Direct cooling system for stable temperature control.
- Fine-controllable refrigeration circuit with valve.
Large storage capacity
- 300ml Fresh frozen plasma bag x 280 pieces.
The MD2F-U541 is certified as a Class IIa Medical Device.
Benefits
- Built-in door latch for each of the double outer doors
- Simple calibration via the control panel
- Visual and audible alarm system
- A safe, secure and easy to access unit to store your samples
- High freezing power
- Environment friendly
Đặc điểm tủ lạnh âm sâu MDF-U5412-PB 482L
- Stable & Uniform Temperature Design
- Double outer doors
- Full-height storage containers on each shelf
- Cooling tubes under every shelf
- Direct cooling system for stable temperature control
- Fine-controllable refrigeration circuit with valve
- Large Storage Capacity
- User Friendly Design
- Built-in door latch for each door
- Easy calibration through the control panel
- Visual and Audible Alarm System
- High & Low temperature alarm
- Power failure alarm with non-volatile memory back up
- Self-diagnostic system
- Remote alarm contact
- Re-activating buzzer, lamp and remote alarm contact (30min. after buzzer stops)
- Standard door lock and independent padlock hasp door latches for extra security
- Remote monitoring by Data Acquisition System (Option)
- 1/7/30 days circular recorder (Option)

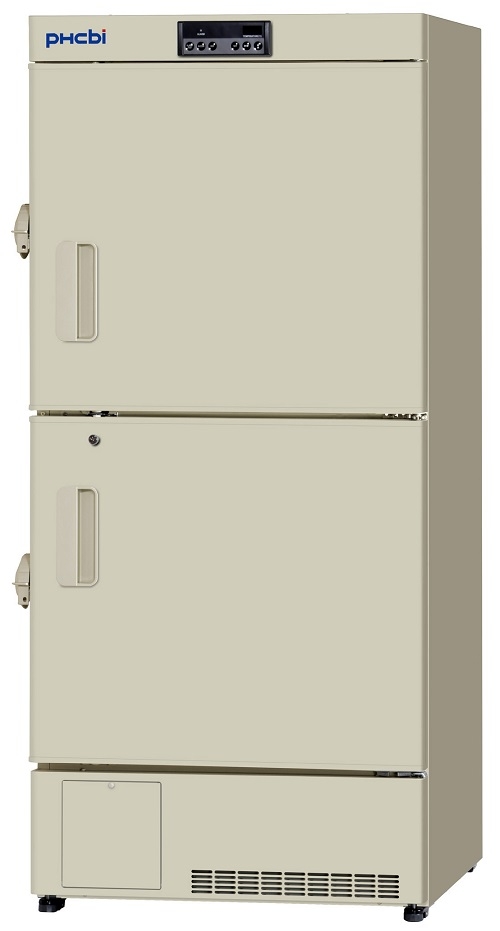

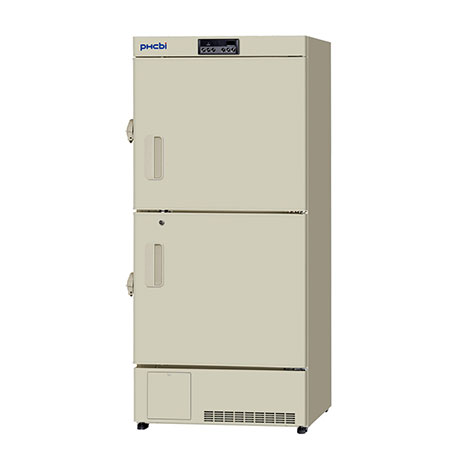

Ảnh sản phẩm tủ lạnh âm sâu MDF-U5412-PB 482L
Thông số kỹ thuật tủ lạnh âm sâu MDF-U5412-PB 482L:
| External Dimensions (W x D x H) | 804 x 772 x 1802 mm |
|---|---|
| Internal Dimensions (W x D x H) | 658 x 607 x 1272 mm |
| Volume | 482 litres |
| Net Weight | 134 kg |
| Capacity (Aluminium Racks 2” Boxes) | - |
| Capacity (Stainless Steel Racks 2” Boxe) | - |
| Cooling Performance | -40 °C |
| Temperature Setting Range | -18 to -45 °C |
| Temperature Control Range | -20 to -40 °C |
| Controller | Micrprocessor |
| Display | LED |
| Temperature Sensor | Thermistor |
| Refrigeration System | Direct |
| Compressors | 400 W |
| Refrigerant | |
| Insulation Material | PUF |
| Insulation Thickness | 70 mm |
| Exterior Material | Painted Steel |
| Interior Material | Styrol resin |
| Outer Doors/Lid | - |
| Outer Door Lock | Y |
| Inner Doors/Lid | - |
| Shelves | |
| Max. Load - Per Shelf | U:30/L:30 kg |
| Max. load - Total | 100 kg |
| Vacuum Release Port | - |
| Access Port | - |
| Access Port Position | Back |
| Access Port Diameter | 30 |
| Casters | 4 (2 leveling feet) |
| Power Failure | V-B-R |
| High Temperature | V-B-R |
| Low Temperature | V-B-R |
| Filter | - |
| Door Open | - |
| Power Supply | Local |
| Frequency | Local |
| Noise Level | 42 dB [A] |
Accessories
| Temperature recorders | |
|---|---|
| - Circular type (recorder housing) | MTR-G85 (MPR-S7) |
| - Continuous strip type (recorder housing) | MTR-4015LH (MPR-S30) |
| RS485 Interface Module | MTR-480 |
