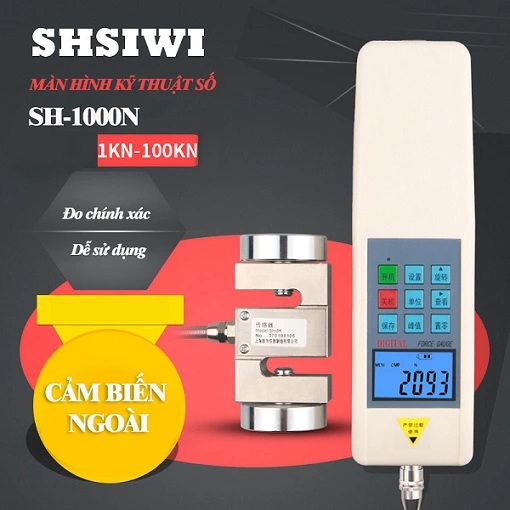

MÁY ĐO LỰC KÉO CĂNG, NÉN SHSIWI SH-1000N

Model: SH-1000N

Made in: SHSIWI - China

- SHSIWI SH-1000N Tension, Compression Force Gauge with external sensor is a small tensile and pull test instrument; simple, multi-functional and high precision.

- Widely used in the production of electronic equipment, construction, light industry textiles, auto parts, repair, etc.

- Testing of tensile force, tension force, destruction, etc. in lock manufacturing, chemical industry, machinery, scientific research, etc.

- High resolution digital display.

- High sampling speed and convenient use.

- A new generation of high-precision and high-efficiency push-pull force testing instruments.

- Simultaneously displays Newton (N), kilogram (Kg) and Pound (lb) units.

Application of SHSIWI SH-1000N tensile and compression force gauge

- The tensile and compression force gauge is widely used in electronics, high and low voltage electrical equipment, auto parts, viscose chemicals, and ignition equipment, light industry, construction, textile, machinery, other industries and scientific research institutions for tensile and compression loads, insertion and extraction. Destructive testing tests... are a replacement for old dynamometers. Used for tensile strength testing on garments

Features of SHSIWI SH-1000N tensile and compression force gauge

- High resolution, accurate.

- 5 test modes, 3 display modes to choose from.

- 3 measurement units N, kg, lb can be easily switched.

- Gravity acceleration setting function. The user can enter the exact value of the gravity acceleration of the place of use. Make the test and unit conversion more accurate.

- Maximum value hold function. Keep the maximum display until it is cleared manually.

- Automatic maximum function, can freely set the time, from 1 to 9999 seconds.

- The tensile and compression force gauge can set the upper and lower limits for statistical analysis. The buzzer can be alarmed by setting the upper and lower limits beyond the limit range.

- Data storage function, can store 447 values

- Data export function, data can be imported into the computer through the data line for various analysis.

- Automatic shutdown function after 10 minutes of inactivity.

- Large screen displays 6 digits.

- Low battery detection cut-off, in case of low battery, automatically turn off the machine to avoid inaccurate measurement due to insufficient battery

SHSIWI Force Gauge, Tension and Compression Force Gauge Specifications

- Maximum load value: 1000N / 100kg / 220Lb

- Division value: 0.1N / 0.01kg / 0.01Lb

- Sensor structure: External sensor

- Error: ±1%

- Power supply: 7.2V/1.2Vx6 NiMH batteries

- Charging time: About 4-6 hours

- Continuous use time: About 15 hours

- Battery life: ≥ 300 times

- Charger: Input: AC 1000-240V, Output: DC 12V 500mA

- Operating temperature: 5°C~35°C

- Storage temperature: -10°C~60°C
