Cảm biến đo độ đẫn điện Online - 8-244-10, 8-11, 8-222-HT, 8-244-S, 8-11-S, 8-22X Conductivity Cell

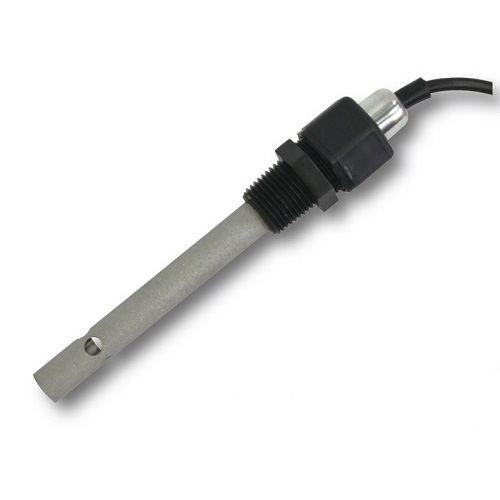

Cảm biến đo độ dẫn điện Online - 8-244-10 Fixed Cable Conductivity Cell

• • Type: 4-electrode sensor
• • Range: 20.00μS~500.0mS
• • Working temp.: 0~70°Ｃ
• • Pressure range at 25°C(77°F): 0~7 bar
• • Temperature sensor: NTC 30K
• • Cell constant: 0.3 cm^-1
• • Process connection: 1/2”NPT
• • Insertion length: 82mm
• • Min. insertion length: 35mm
• • Max. length: 142mm
• • Fixed cable length: 10m

Cảm biến đo độ dẫn điện Online - 8-222-HT Resistivity Cell

• Order No.:8-222-HT
• Type: 2-electrode sensor
• Range: 0.05μS/cm~100.00μS/cm 0.00~18.00 MΩ·cm
• Working temp.: 0~100°Ｃ
• Pressure range at 25°C(77°F): 0~7 bar
• Electrode Material: Titanium, PTFE
• Body Material: PTFE
• Temperature sensor: NTC 30K
• Cell constant: 0.05 cm⁻ ¹
• Insertion length: 63mm
• Max. length: 104mm
• Compatible cable length: 5m, 10m, 20m, 30m
• Compatible bypass chamber: 8-TF02

Cảm biến đo độ dẫn điện Online - 8-244-S Conductivity Cell

• Order No.: 8-244-S
• Type: 4-electrode sensor
• Range: 20.00 μS/cm~500.0 mS/cm
• Working temp.: 0~70℃
• Pressure range at 25℃(77℉): 0~7 bar
• Electrode Material: Graphite
• Body Material: Epoxy resin/UPVC
• Temperature sensor: NTC30K
• Cell constant: 0.3 cm⁻ ¹
• Process connection: 1/2” NPT
• Min. insertion length: 35 mm
• Max. length: 154.6mm
• Compatible cable length: 5m, 10m, 20m, 30m
